| Place of Origin: | Ningbo Zhejiang |
|---|---|
| Brand Name: | Brynick |
| Certification: | N/A |
| Model Number: | BN640017 |
| Minimum Order Quantity: | 1 Unit |
| Price: | Negotiable |
| Packaging Details: | Bulk Packing in container with Plastic Wrapped and Forklift Base |
| Delivery Time: | 5-25 days upon order quantity |
| Payment Terms: | D/A, Western Union, T/T, D/P, MoneyGram, L/C |
| Supply Ability: | 5000 Units Per Month |
| Width: | 96 Inch | Depth: | 36 Inch |
|---|---|---|---|
| Height: | 8 Feet | Beam Style: | Step |
| Beam Step Depth: | 3/4" | Beam Step Height: | 1 1/2" |
| Highlight: | industrial pallet racks heavy duty,industrial pallet shelving |
||
Add On Unit for Standard Teardrop Pallet Rack to Increase Whole Width
Description

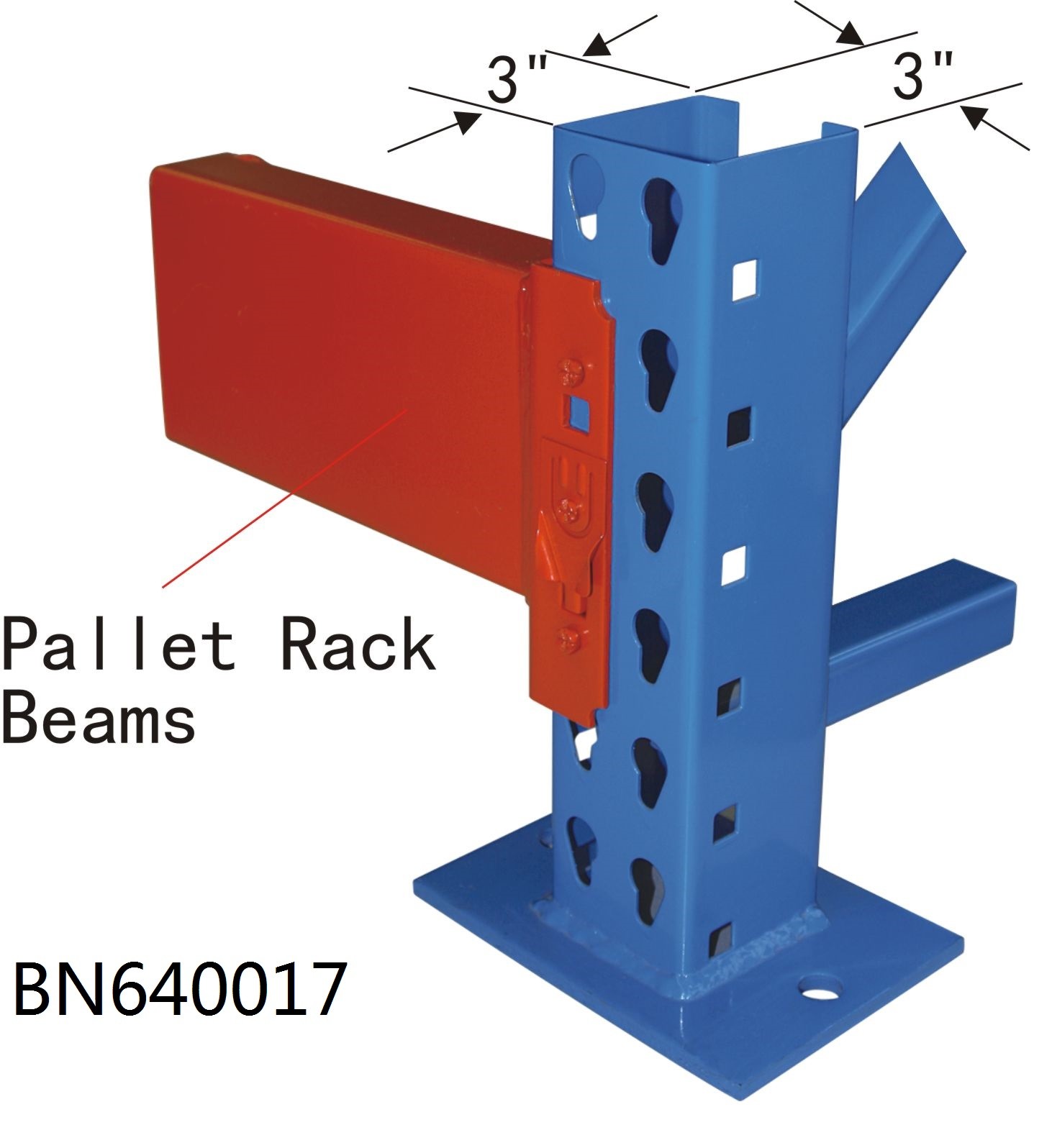

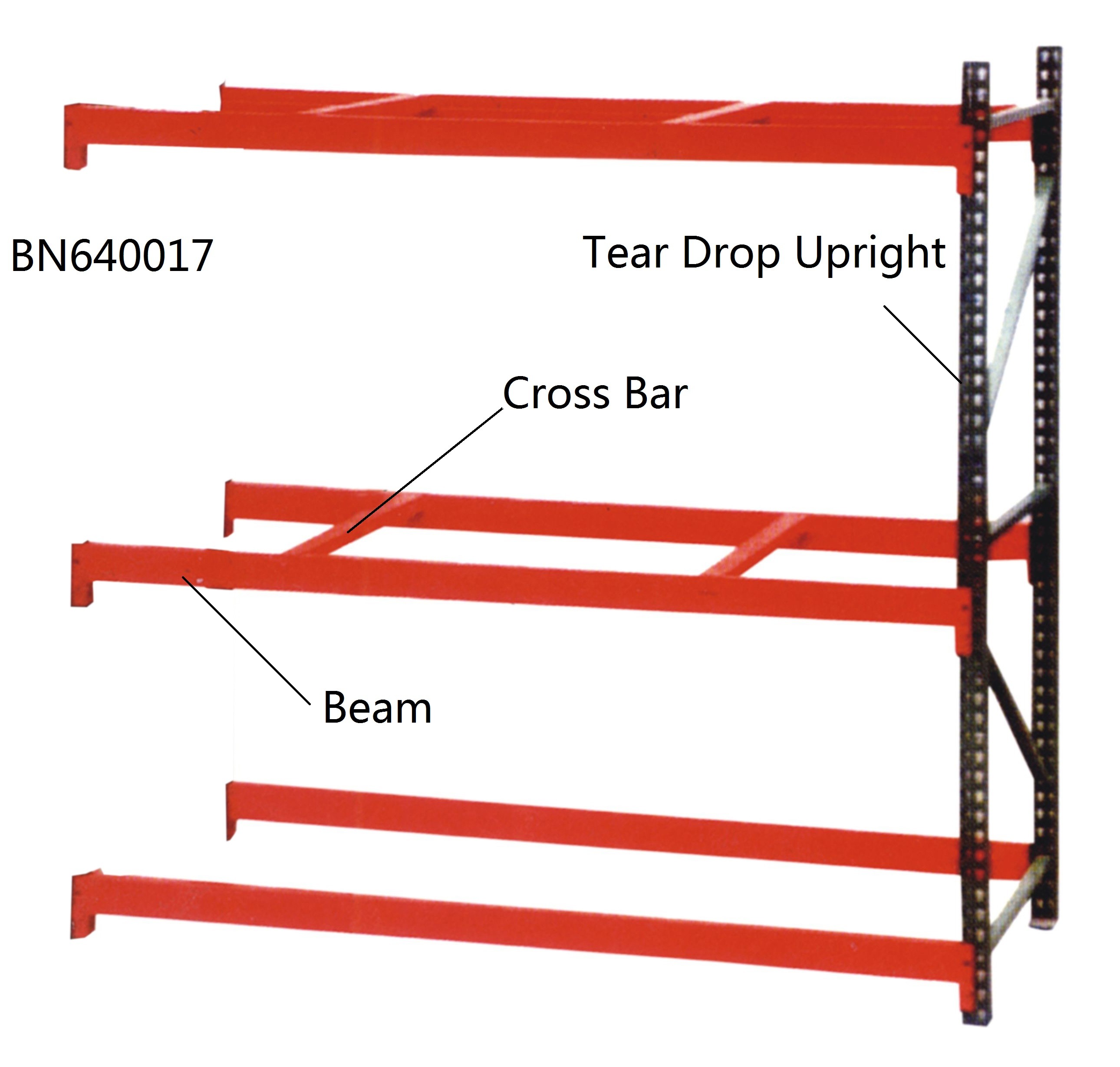

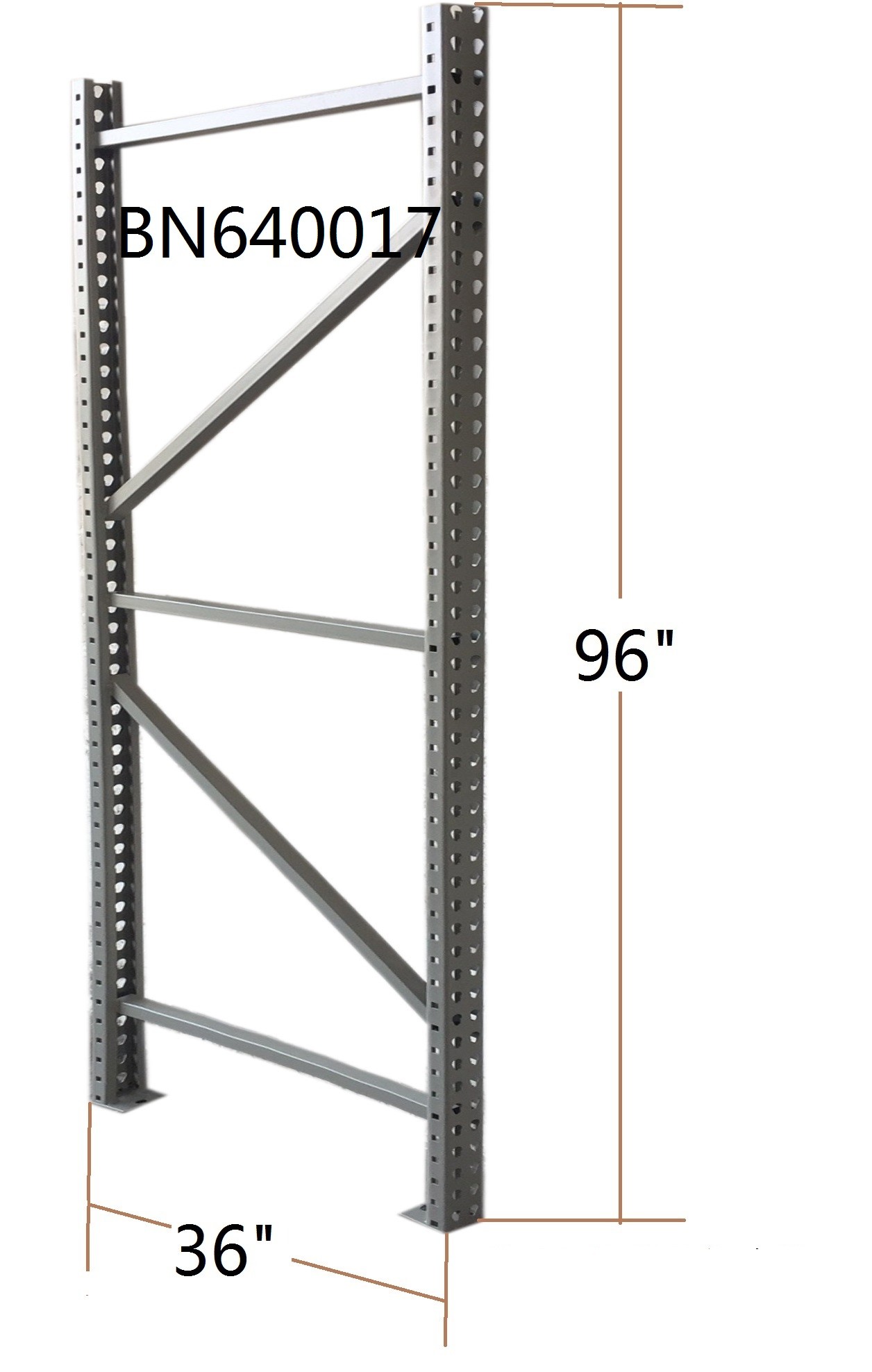

Full welded roll formed industrial teardrop pallet rack upright standard teardrop design has center-reinforcing rib and provides heavier bracing for additional strength and rigidity and impact resistance. High-strength steel is used certified to meet the strictest specifications. Durable heavy 14 gauge steel one piece box-formed reinforced upright frame punched 2" on centers for maximum adjustability and 14 or 16 gauge beams for different capacity and years of service. Lock automatically snaps into place and secures beam, is visible for easy checking and fast adjustment. Welded braces provide maximum rigidity and stability. This storage rack design is economical, efficient and adaptable in application, due to quick assembly and adjustment without tools. The durable powder coating and baked enamel finishes ensure long life under even the most demanding conditions. Step down beam design accommodates cross bars and decking. Add-on unit includes 1 upright frame and 2 pairs of shelf beams.
Application
Perfect for industrial, retail and general warehousing with palletized products and a wide variety of goods applications
Feature
Specification
| Description | Pallet Rack |
| Item# | BN640017 |
| Type | Add on Unit |
| Construction | Teardrop |
| Material | Roll Formed Steel |
| Upright Gauge | 14 GA |

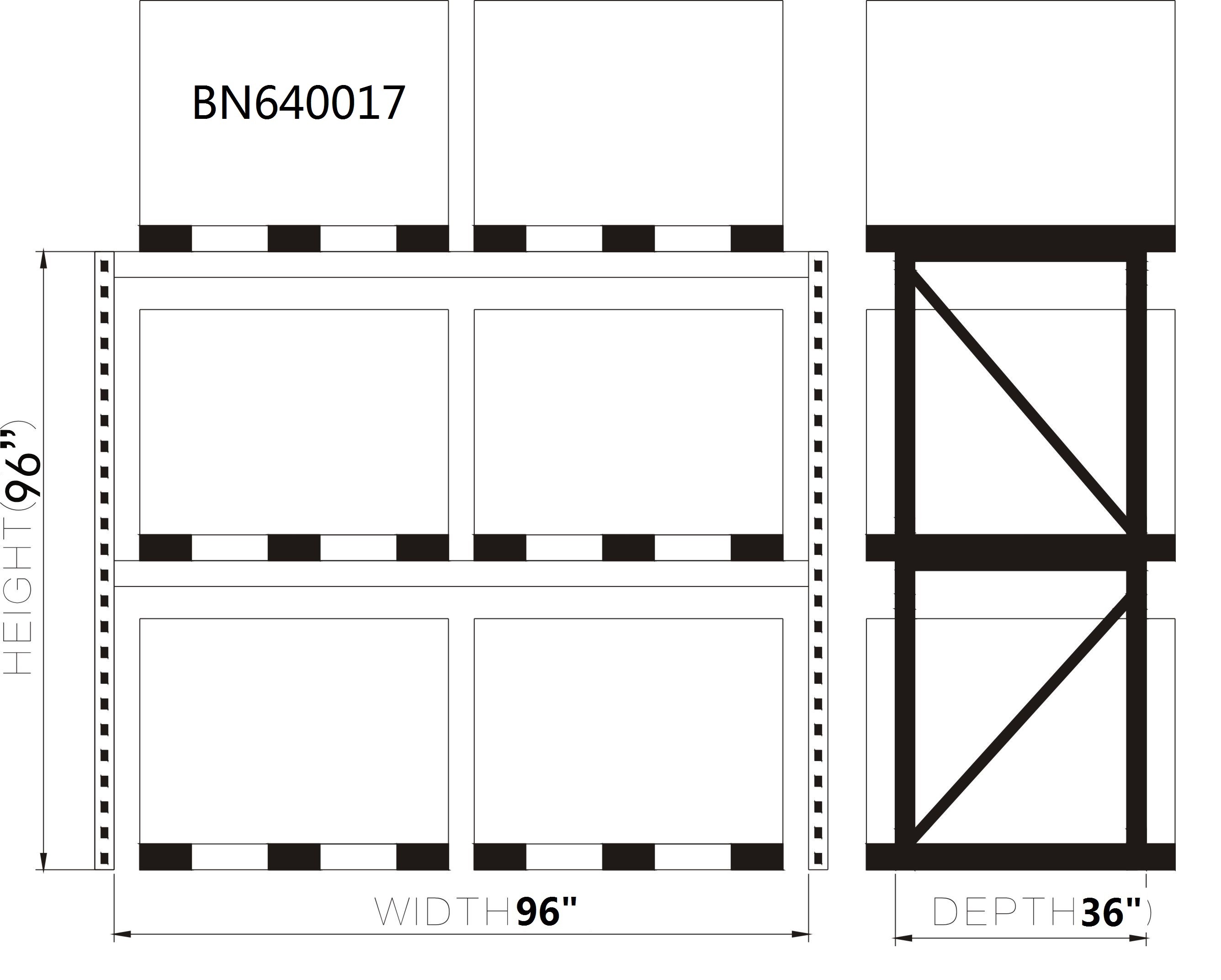

| Width | 96 Inch |
| Depth | 36 Inch |
| Height | 8 Feet |
| Beam Style | Step Beam |
| Beam Gauge | 14 Ga |
| Beam Step Depth | 3/4" |
| Beam Step Height | 1 1/2" |
| Assembly | Unassembled |
| Capacity | 5030 lb |
| Finish | Powder coated |
| Footplates | 4" X 4 1/4" |
| Include | 1 uprights, 4 beams |
| Connection Style | Pin with automatic lock |
